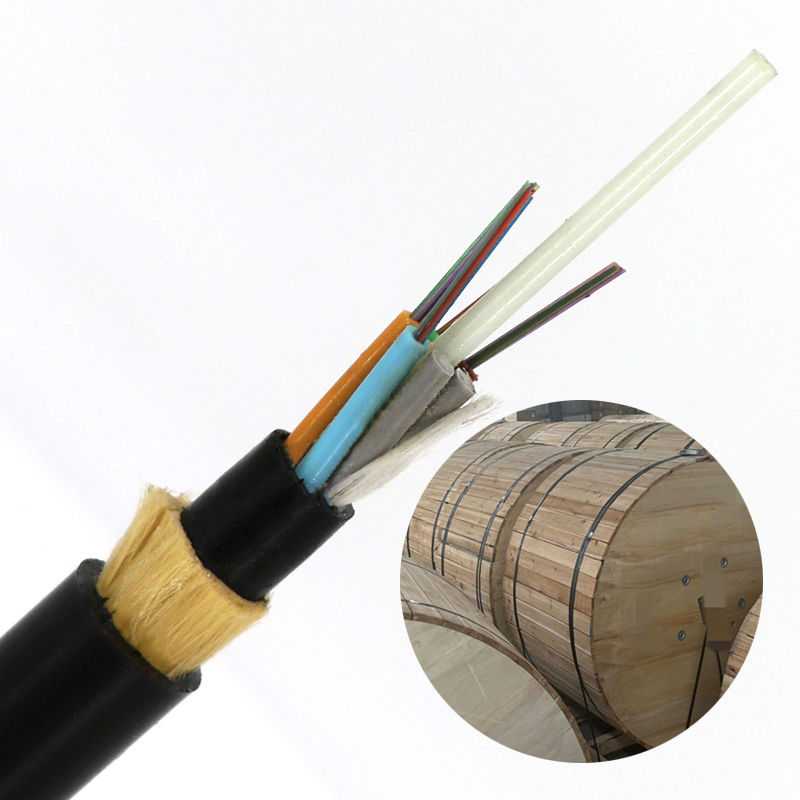

Outdoor FTTH Fiber Optic Cable ADSS 2 4 6 8 12 24 48 72 96 Core Span Aerial Fibre Optical Cable
The structure of ADSS optical fiber cable adopts loose tube layer stranded structure, 250µm fiber is positioned in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube (and filling rope) is twisted around the non-metallic central reinforcing core (FRP) to form a compact cable core, and the gap of the cable core is filled with water blocking ointment. The cable core is extruded with polyethylene (PE) inner sheath, then twisted with aramid for reinforcement, and finally extruded with polyethylene (PE) outer sheath or AT outer sheath.
The design of ADSS optical cable fully considers the actual situation of power lines and is suitable for different levels of high-voltage transmission lines. Polyethylene (PE) sheath can be used for 10kV and 35kV Power lines; For 110kV and 220kV power lines, the hanging point of optical cable must be determined by calculating the distribution of electric field strength, and the at outer sheath must be used. At the same time, the dosage of aramid fiber and perfect stranding process are carefully designed to meet the application requirements of different spans.
- Small cable diameter (adapt for bad climate), light weight, 100m span, low attached load on tower.
- Non-metal structure, good insulation, anti-thunder.
- Fine production technology, even force for aramid yarn, with superior stress flexibility.
| Weather conditions | A | B | C | D |
|---|---|---|---|---|
| Wind speed(m/s) | 25 | 35 | 10 | 10 |
| Icing(m/s) | 0 | 0 | 5 | 10 |
| Extra load(N/m) | 0.7 | 0.7 | 2.5 | 4.4 |
| Item | G.652 | G.655 | 50/125um | 62.5/125um |
|---|---|---|---|---|
| Attenuation @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
| Attenuation @1300nm | ≤1.0dB/km | ≤1.2dB/km | ||
| Attenuation @1310nm | ≤0.36dB/km | ≤0.40dB/km | ||
| Attenuation @1550nm | ≤0.22dB/km | ≤0.23dB/km | ||
| Bandwidth @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
| Bandwidth @1300nm | ≥1000MHZ.km | ≥600MHZ.km | ||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable cut-off wavelength | ≤1260mm | ≤1450mm |
| Reference diameter(mm) | RTS (kN) | MAT(kN) | Sectional area of tensile element(mm²) | Modulus of elasticity(kN/mm²) | Coefficient of thermal expansion(10-6/K) |
|---|---|---|---|---|---|
| 11.8 | 10 | 4 | 4.6 | 7.6 | 1.8 |
| 12 | 15 | 6 | 7.6 | 8.3 | 1.5 |
| 12.3 | 20 | 8 | 10.35 | 9.45 | 1.3 |
| 12.6 | 24 | 10 | 13.8 | 10.8 | 1.2 |
| 12.8 | 30 | 12 | 14.3 | 11.8 | 1 |
| 13.1 | 36 | 15 | 18.4 | 13.6 | 0.9 |
| 13.5 | 45 | 18 | 22 | 16.4 | 0.6 |
| 13.8 | 53 | 22 | 26.4 | 18 | 0.3 |
| 14.4 | 60 | 26 | 32.2 | 19.1 | 0.1 |
| 14.6 | 70 | 28 | 33 | 19.6 | 0.1 |
| 14.8 | 85 | 34 | 40 | 20.1 | 0.1 |
| Span(m) Adapt to meteorological conditions | Weight (kg/km) |
|---|---|
| A: 160, B: 100, C: 140, D: 100 | PE: 117, AT: 124 |
| A: 230, B: 150, C: 200, D: 150 | PE: 121, AT: 129 |
| A: 300, B: 200, C: 290, D: 200 | PE: 126, AT: 134 |
| A: 370, B: 250, C: 350, D: 250 | PE: 133, AT: 141 |
| A: 420, B: 280, C: 400, D: 280 | PE: 138, AT: 145 |
| A: 480, B: 320, C: 460, D: 320 | PE: 145, AT: 153 |
| A: 570, B: 380, C: 550, D: 380 | PE: 155, AT: 163 |
| A: 670, B: 460, C: 650, D: 460 | PE: 163, AT: 171 |
| A: 750, B: 530, C: 750, D: 510 | PE: 177, AT: 186 |
| A: 800, B: 560, C: 800, D: 560 | PE: 182, AT: 191 |
| A: 880, B: 650, C: 880, D: 650 | PE: 195, AT: 204 |
